Vail Filling Machines

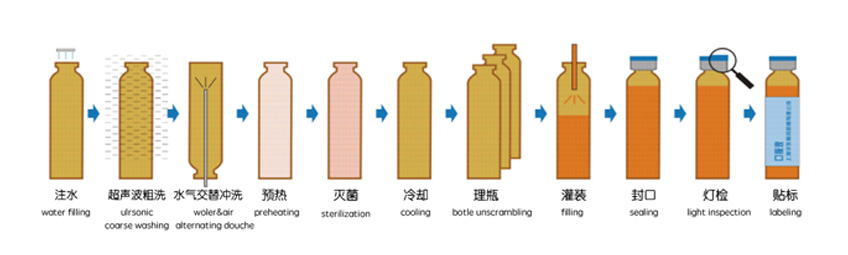

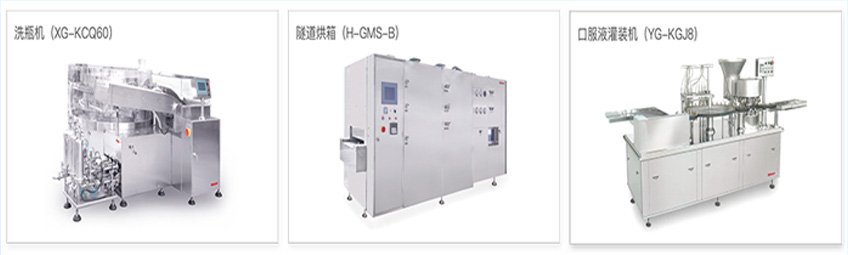

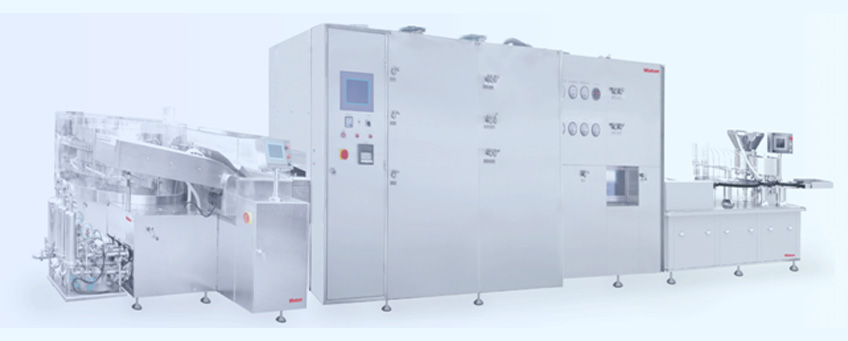

This linkage line is mainly applicable to the production of oral liquid preparations. This linkage line unit is composed of XG-KCQ bottle washing machine, H-GMS series hot air tunnel oven, and YG-KGJ series oral liquid filling and sealing machine. The unit has the functions of cleaning, drying and sterilizing, filling and capping, and capping and sealing. It is mainly suitable for the production of oral liquid in pharmaceutical companies and is the preferred linkage group for the new version of GMP.
Description:

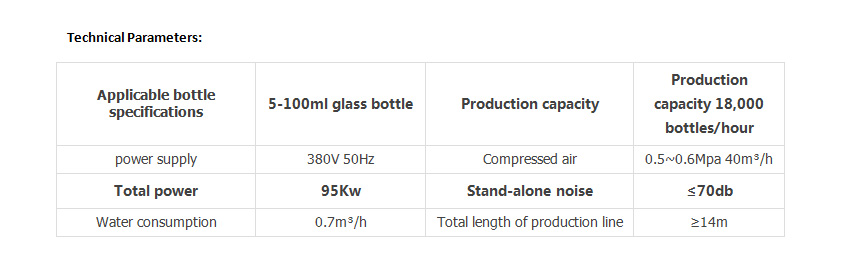

The unit capacity is 6000-18000 pieces/hour.
XG-KCQ bottle washing machine adopts the combination of ultrasonic cleaning and independent separate water and air pressure jet washing. The cleaned oral liquid bottle complies with the new version of the Pharmacopoeia on visible foreign body standards.
H-GMS-B hot air circulation sterilization tunnel oven adopts full laminar flow (high temperature resistant 350C) combined with hot air high temperature drying and sterilization process, which can make the oral liquid bottle run in the tunnel to meet the requirements of Class A (ISO5). Some chain-type mesh belt conveying mechanism guarantees the stable conveying of oral liquid bottles. It has the characteristics of low energy consumption, high temperature uniformity, and good depyrogenation effect. It is a drying and sterilization equipment that is popular at home and abroad and has high applicability. YG-KGJ series oral liquid filling and sealing integrated machine adopts frequency conversion speed control to control the conveyor belt to enter the bottle and track the filling.
Precise loading of plunger pumps (peristaltic pumps), small single-pole crimping and sealing equipment, flexible crimping and sealing, stable operation of the equipment, and high qualified rate of finished products.
