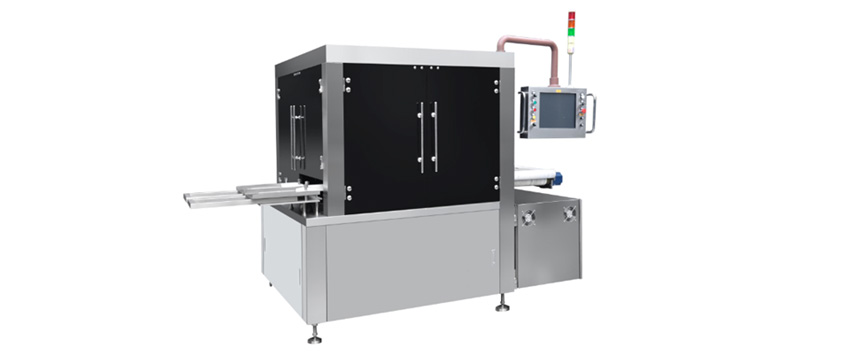

Automated Optical Inspection Machine in Pharmaceutical
Our inspection system for pharmaceutical is suitable for vials, cartridges, syringes and ampoules, IV bags, BFS Strips, plastic containers
Introduction of Optical Inspection Machine
Our inspection systems for pharmaceutical processing process vials, cartridges, syringes and ampoules, IV bags, BFS Strips, plastic containers Further, our systems are both reliable and easy to use. By using Tyndall Effect, the concentrated light screen makes the impurity particles strongly contrasting, and will be easily to identify.
Process of Optical Inspection Machine
Our The bottle goes through the single station semi automatic inspection machine into the bottle buffer mesh belt
The high speed rotating area before inspection
inspection area (the bottle arranged on the conveyor shaft by the bottle feeding device, when entering the observation area, the roller shaft motor rotates at high speed to drive the bottle to rotate at high speed, then the liquid in the bottle is speeded up to fluctuate and then cause the impurities floating inside the bottle, passes through the examination of the dark chamber, and then pass through the light curtain which is with the concentrated light source, and causes the Tyndall effect under the light curtain, causing a strong contrast of the impurity particles, which is very easy to be identified. Also the small packaging defects and external defects of the bottle will be totally reflected by the magnifying glass. When the inspection person is confirmed the non-qualified bottle, it only needs to point it out by press button, no need to take it out, when the non-qualified bottle transported to the output, it will be automatically removed, greatly improving the working efficiency, reducing the labour intensity)
Non-qualified products rejection area.
Bottle output track.
Qualified bottle collection table.
Applications of Optical Inspection Machine
The automated optical inspection machine is able to connect with forming line such as Vials Forming Line, Cartridges Forming Line and Pre-filled Syringes Forming Line etc.
There are many types of products can be inspected: solution liquid, pure water, antibiotics, suspensions, eye drops, diagnostic reagents.
A variety of defects can be detected: particles, impurities, appearance defects of glass containers, and microwave cracks
Features of Optical Inspection Machine
Accurate: It can detect reflective and opaque particles up to 20μm inside the product
Wide range: Whether there are particles inside the product, foreign matter inspection, filling level inspection, container appearance and function failure detection, label sticking and verification
Reliable: The inspection machine is equipped with a high-resolution camera, a high-speed visual capture and processing system, and dual independent particle inspections to provide redundancy
Smart: The machine is equipped with an automatic rejection system, which has various exit channels according to the nature of the defect
Efficient: It provides advanced statistical analysis and detailed waste classification to help detect the causes of waste in the upstream production process
