Filling and Sealing Machine

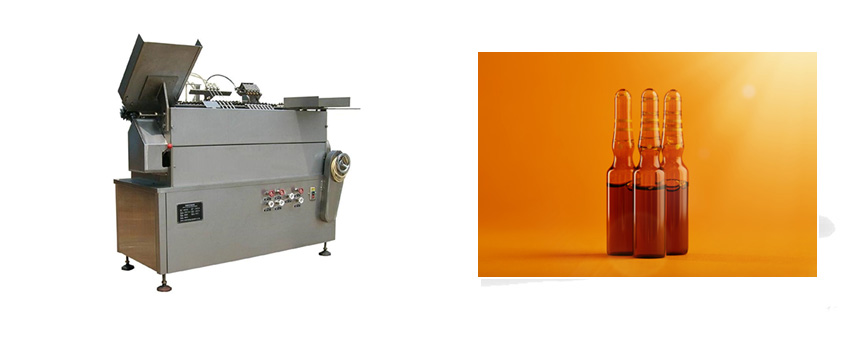

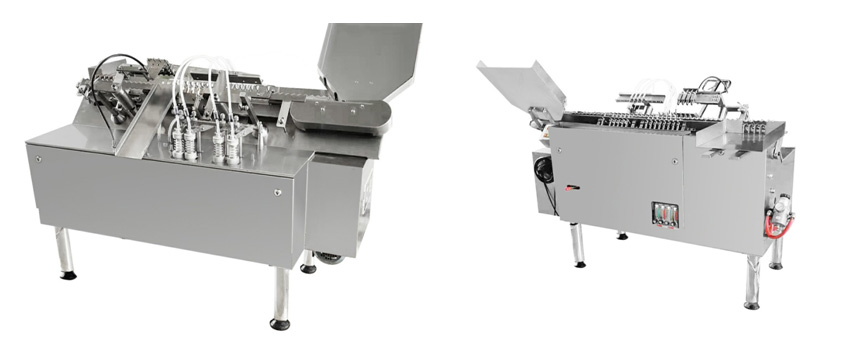

Automatic Glass Ampoule Filling and Sealing Machine

placeholder

Introduction of Ampoule Filling and Sealing Machine

The compact ampoule filling sealing machines are specially-designed machines for simultaneous filling and sealing operations to maximize efficiency. It is a machine designed to work in a sterile workplace, and is known for its simplicity, operational reliability and minimal maintenance factors. Automatic ampoule filling and sealing machine adopts the rectangular way to transfer ampoules, in such case, the transferring is steady, lower braking rate. A new type of clutch is mounted under the ampoule feeding hopper; therefore the ampoule can be stopped at any time while the machines are still running. So the ampoule consumption can be reduced. Electromagnetic switch is replaced with mechanical way in the part of filling stop system. It is more reliable and durable.


Features of Ampoule Filling and Sealing Machine
  • Fine and solidly constructed for clean and trouble long-term use, the machine complies cGMP standard
  • Easy to use and maintain
  • Fine-Setting fill pumps ensure most accurate liquid closings; All liquid passage parts can be easily disassembled for thorough cleaning and sterilization
  • High flexibility and capacity to process all sizes of ampoules
  • No-Ampoule-No-Fill ampoules system avoids liquid loss & spillage
  • Wide choice of optional units available;
  • Variable fill speed and individule flame nozzle controls guarantee fine and sure seals
  • Both Rpe-And After-Flashings of inert gas are possible

  • The Structure of Ampoule Filling and Sealing Machine

  • Automatic loading on stainless steel belt
  • “No ampoule – No liquid” function
  • Dispensing system with stainless steel rotary piston pumps
  • Centralised and individual micrometric dispensing adjustments
  • Automatic ignition of the flame unit
  • Sealing station
  • Exhaust fumes extractor
  • Automatic unloading on tray

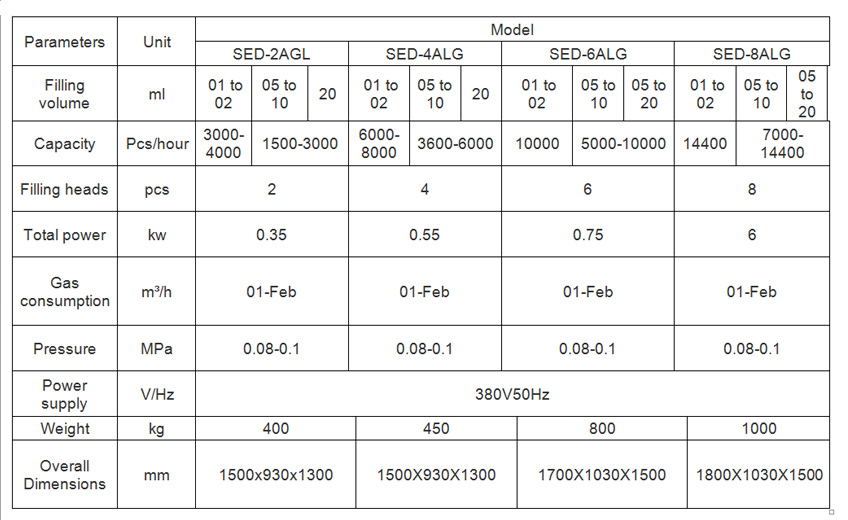

  • Technical Parameters: placeholder placeholder
